Shrink Packaging

Feature The equipment is a fully automatic intelligent packaging line that integrates the functions of bottle feeding, bottle separation, sleeve labeling and shrink labeling. The real high speed, precise positioning, manpower reduction and perfect packaging are the spirit of this equipment design. In the...

Model: HFQ-590 HFQ-720 Packaging Speed: 50-100times/min 50-100times/min Max. packing size H≤120mm W+H＜245mm H≤120mm W+H＜310mm Film Width: ≤590mm ≤720mm Machine dimension: 5000*960*1450mm 5000*1100*1450mm Weight: 1000kgs 1100kgs Voltage: 220V single-phase or 3-phase 50-60hz 220V single-phase or 3-phase 50-60hz   The automatic shrink wrap machine is a fully...

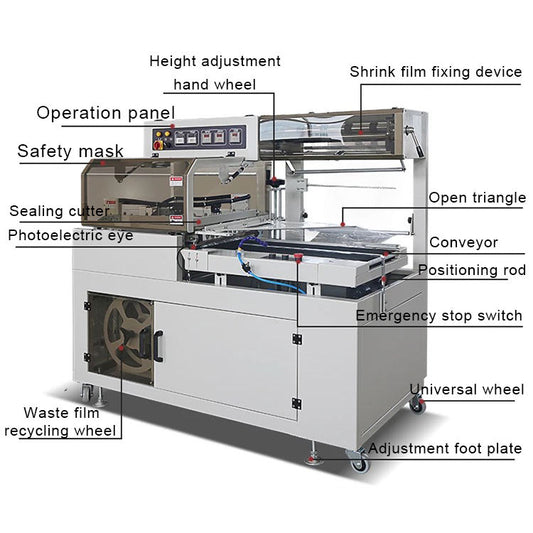

Model AFL-6040 Voltage 110/220V 50-60HZ Power 2KW Packing Speed 0-12 pcs/min Working Pressure 4-6Kg/cm2 Max Sealing Width 700mm Sealing Time 0.01-1.5s Max. Film Width 650mm Max. Packing Size L280*W700*H380mm                                 W+H≤650mm Machine Weight 270KG Dimension 1650*920*1895mm Model BSE-6040A Voltage 220/380V  50-60Hz Conveying Speed 1~10m/min Conveying...

Model BSE4535A BSE5035A BSE6040A Voltage 3 Phase  220V,380 - 460V / 50-60Hz  Heat sealing power 20KW Adjuster 23KW Adjuster 27KW Adjuster Transport speed 0~15m / min  Channel size 150*45*35cm 180*50*35cm 180*60*40cm Product size 35*25cm 45*40cm 55*45cm Bear weight 25kg Max 35kg Max 35kg Max Machine size 215*69*140cm 285*74*155cm 285*84*160cm Machine weight 230kgs 290kgs 340kgs Shrinkable film PE , POF , PVC , PP

Model FQL-450  Voltage 220V 380V/ 50~60Hz Packing Speed 6~12 times/min Conveying weight 10kg Heating Power 1.2kw Max Wrapping Size 45*55cm Max packing height 15cm Applicable films PE,PVC, POF, PP Machine Weight 120kg Dimension 143*83*63cm Model BSE4525 Voltage 220V 380V/ 50~60Hz  Conveying Speed 1~10m/min Conveying weight 20kg Heating Power 6kw Max Wrapping Size 40*20cm  Shrink tunnel size 900mm*450mm*250mm Applicable films PE,PVC, POF, PP Machine Weight 90kgs Dimension 120*60*135cm

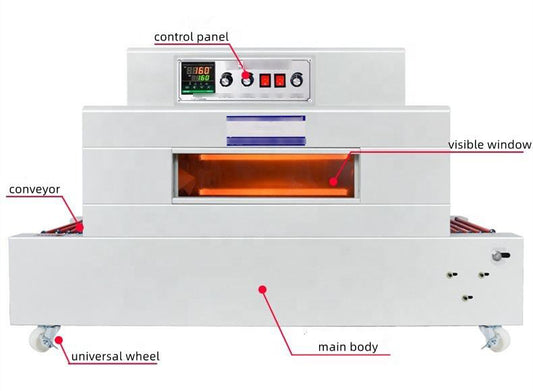

Model BSN2615W   BSN4020W BSN5030W  BSN6030W Voltage 220V/50-60Hz 220-380V/50-60Hz 380V/50-60Hz 380V/50-60Hz   Power 3kw 5.5kw 11kw 11kw Transport speed 0~15m/min  Tunnel size 80*26*15cm 80*40*20cm 120*50*30cm 120*60*30cm Product size 20*10cm 35*15cm 45*25cm 55*25cm Transport material Mesh belt  ,   chain roll  ,   Teflon Conveying load 5kg Max 15kg Max 20kg Max 20kg Max Machine size 100*44*56cm 110*56*66cm 160*66*76cm 160*76*76cm Machine weight 40kg  60kg 90kg 100kg...

Model: FQS-450 FQS-550 FQS-550H Packaging Speed: 15-30times/min 15-30times/min 15-30times/min Conveying Weight: 10kg 10kg 10kg Film Width: ≤500mm ≤600mm ≤700mm Packing Size: L≥100mm ,W≤330mm H≤140mm, W+H≤400mm L≥100mm ,W≤430mm H≤140mm, W+H≤500mm L≥100mm ,W≤430mm H≤240mm, W+H≤600mm Packaging dimension: 1880*990*1450mm 1960*1100*1600mm 1960*1100*1600mm Voltage: 110/220V 50-60hz 110/220V 50-60hz 110/220V...

Model: FQS-450 FQS-550 FQS-550H Packaging Speed: 15-30times/min 15-30times/min 15-30times/min Conveying Weight: 10kg 10kg 10kg Film Width: ≤500mm ≤600mm ≤700mm Packing Size: L≥100mm ,W≤330mm H≤140mm, W+H≤400mm L≥100mm ,W≤430mm H≤140mm, W+H≤500mm L≥100mm ,W≤430mm H≤240mm, W+H≤600mm Packaging dimension: 1880*990*1450mm 1960*1100*1600mm 1960*1100*1600mm Voltage: 110/220V 50-60hz 110/220V 50-60hz 110/220V...

Features: The 2-in-1 heat shrink packaging machine uses POF and PVC shrink film as the material, which integrates sealing and shrinking. It only needs one person to work to complete the product sealing and shrinking, and cuts the power consumption. Application:Applicable to beverages, beer,...

Model BZJ-5038   Voltage 220V 380V/ 50~60Hz Packaging Speed 0~8 times/min Sealing Cutting Time 0.5-1.5s, 0-0.6s Conveying Weight 25kg Film Width 500mm Film Thickness 0.03-0.25mm Mini Packing Size(L*W*H) 250 x 60x60mm Max Packing Size(L*W*H) 500 x 270x350mm Machine Weight 170KG Dimension 1500*830*1900mm Model BSE-5040A Voltage 220V 380V/ 50~60Hz Conveying Speed 1~10m/min Conveying weight 30kg Heating Power 22kw Max Wrapping Size 45*35cm Shrink tunnel size 150cm*50cm*40cm Applicable films PE,PVC, POF, PP Machine Weight 230KG Dimension 263*85*136cm

FQA-450+BSE-4522 L-bar automatic heat shrink carton orbital wrapping machine, fully automatic boxes shrink wrap machine, Shrink wrapper Model: FQA-450 FQA-550 Packaging Speed: 15-30times/min 15-30times/min Conveying Weight: 10kg 10kg Film Width: ≤500mm ≤600mm Packing Size: 450mm＞L＞100mm , W＜330mm, H≤140mm, L+H＜500mm, W+H＜400mm 550mm＞L＞100mm , W＜430mm, H≤140mm, L+H＜600mm, W+H＜500mm...
