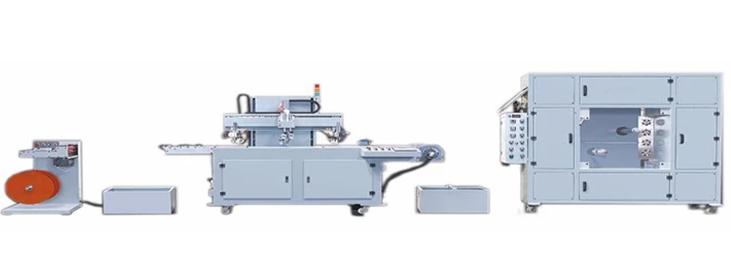

Automatic Roll Screen Printing Machine

Automatic Roll Screen Printing Machine

Regular price $35,000.00
Regular price Sale price $35,000.00
Sale Sold out
Shipping calculated at checkout.

Main Features

1,Automatical feeder

● Opto-electrical+swing-controlled feeding, applicable for various materials feeding.

● Frequency-converted motor controls feeding, with stable and adjustable speed.

● Set stop and alarm functions for no-charging and machine failure.

2,Full automatic computerized numerical screen printing machine

● Multicolor automatic tracing contraposition, Japanese Mitsu PLC+German CK color patch sensor

controlling system, precise and stable contraposition and registration.

● Printing automatic calculation, stop and alarm automatically when reaching stated quantity.

● To set stop and alarm functions for no-charging and machine failure.

● To adopt Japanese servo motor drive for squeegee. The ink reclaiming, position and speed of

printing can be set separate; ink reclaiming uniform, stable printing, printing consistently and clearly,

uneasy to appear color shading and drain stipple.

● To set automatic dust collection function to remove dust on prints that improves product conformity


To set off-net function. Screen plate releases off the prints in an inclined angle along with squeegee

when printing and the lightface stipple is distinct in high-speed operation, not easy to adhesive to web.

It's applicable for printing special inks such as large area of impression pattern, glue, etc.

● The machine has set manual air drafting function, the speed and strength are adjustable.

● To set separate adjusting devices for squeegee pressures to ensure the stability of squeegee

pressure and to improve precision and stability of registration as well as the reducibility of printed


● It can print various special materials, such as various winding materials include: PET, PVC, PC,

membrane, transfer paper, tetoron, self-adhesive label paper, etc.

3, Full automatic uv dryer

●There are 2 sets of 3KW (6KW) UV light source system, please utilize it according to the detailed requirement ●The imported Teflon mesh belt conveyor, it is enjoying precise production, smooth running , and restful.

●The speed of conveyor is adjustable,it can be adjusted any reasonable speed you need.

●Precise and imported photo spot, high reflective lampshade, quick drying.

●The illuminating height of UV shade is also adjustable.

●The operating current of UV lamp is showed outside so as to control the working status.

●There is a heat-extraction system to keep a high-efficiency working environment .

4,Full automatic energy-saving IR dryer

● Uniform and stable temperature of automatic constant temperature IR warming air-drafting cyclic


● Add peeling-off paper function, applicable for printing adhesive or special inks to avoid damages of

product conglutination.

● Add destaticizing function to eliminate damages of static to human body and to avoid charged

product.easy to collect dust, reduce product pollution.

● Convolute hanging drying design to ensure that products are even heated products, quick drying

but non-deforming, low electricity consumption and small footprint thus to minimize power

consumption and save energy.
