Concentration Equipment

Concentration Equipment

1 total reviews

Regular price $9,980.00
Regular price Sale price $9,980.00
Sale Sold out
Shipping calculated at checkout.

The extraction equipment will customize the tank according to the customer's requirements and the extraction object. Communicate the needs, and calculate the price after confirming the plan. The product price is not for reference, please contact us for the corresponding fee.

 Model CTM-50 CTM-100 CTM-200
Extraction tank volume (L) 50 100 200
Concentration tank volume (L) 50 100 200
Extraction tank jacket working pressure (Mpa) Atmospheric pressure
Working pressure in extraction tank (Mpa) Atmospheric  pressure
Concentration tank vacuum degree (Mpa) -0.08 -0.08 -0.08
Extraction temperature °C 100 100 100
Concentration temperature °C 50-65 50-65 50-65
Power(KW) 1000 1000 2000

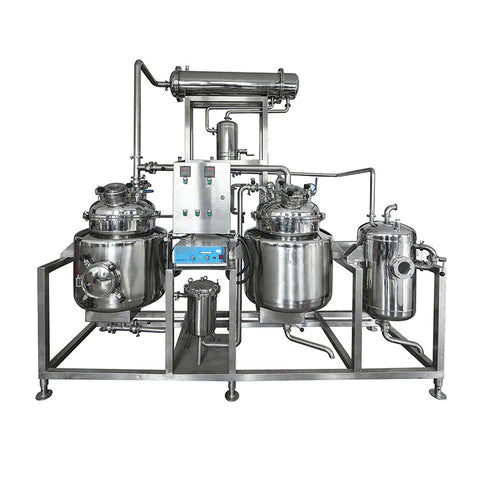

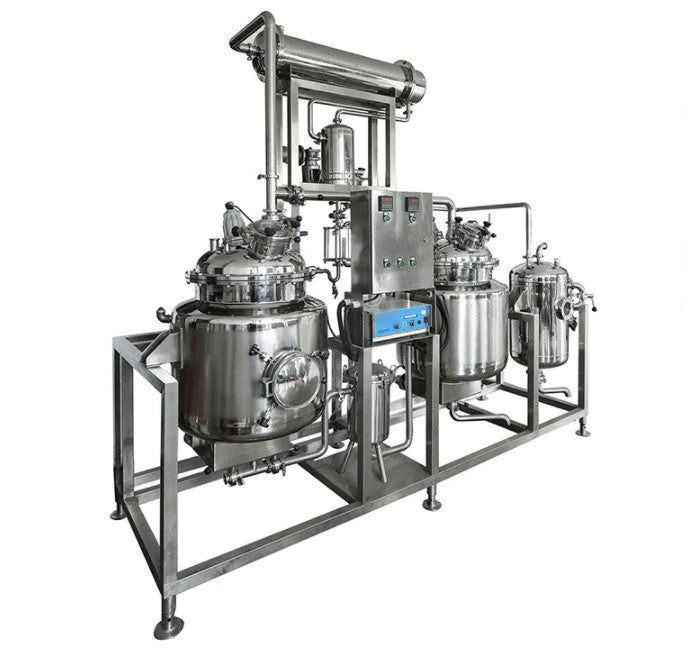

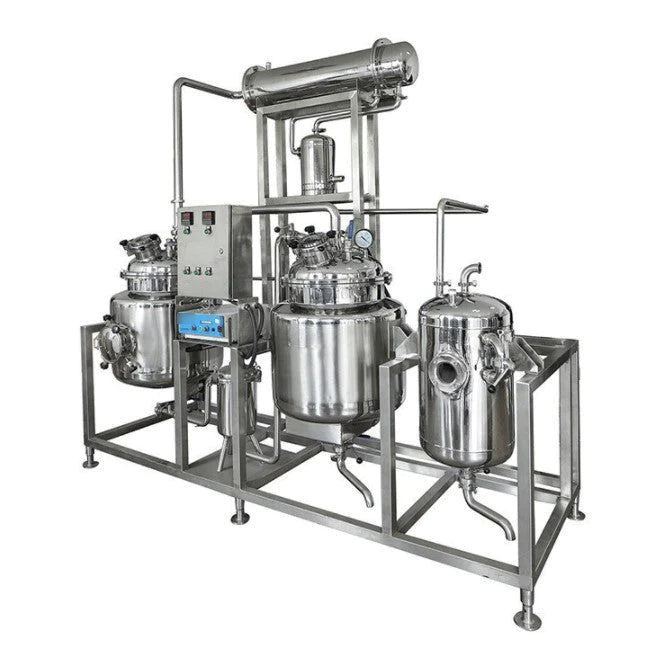

The extraction tank is a multi-purpose equipment designed for traditional Chinese medicine factories, boiling and extraction processes. It can extract, recover alcohol and separate volatile oil in this process. In addition to the main equipment of the extraction tank, this equipment is also equipped with a foam catcher, a cooler, an oil-water separator, etc. These devices are made of high-quality stainless steel wherever they come into contact with the drug. The extraction process of this equipment is completed in a sealed and recyclable system, and the organic solvent is recovered from the waste residue at the same time.
