Electric Flatbed Screen Printing Machine

Electric Flatbed Screen Printing Machine

Regular price $6,599.00
Regular price Sale price $6,599.00
Sale Sold out
Shipping calculated at checkout.

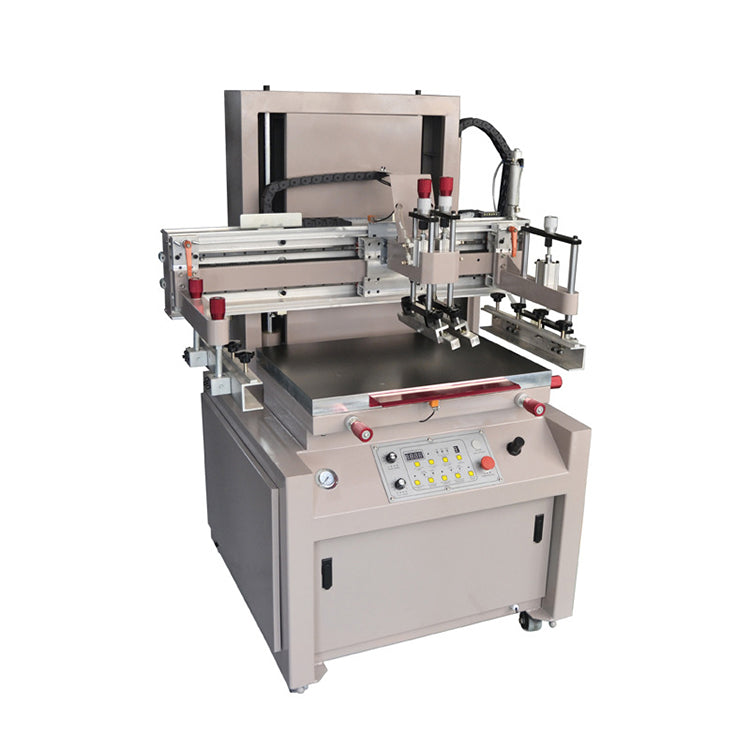

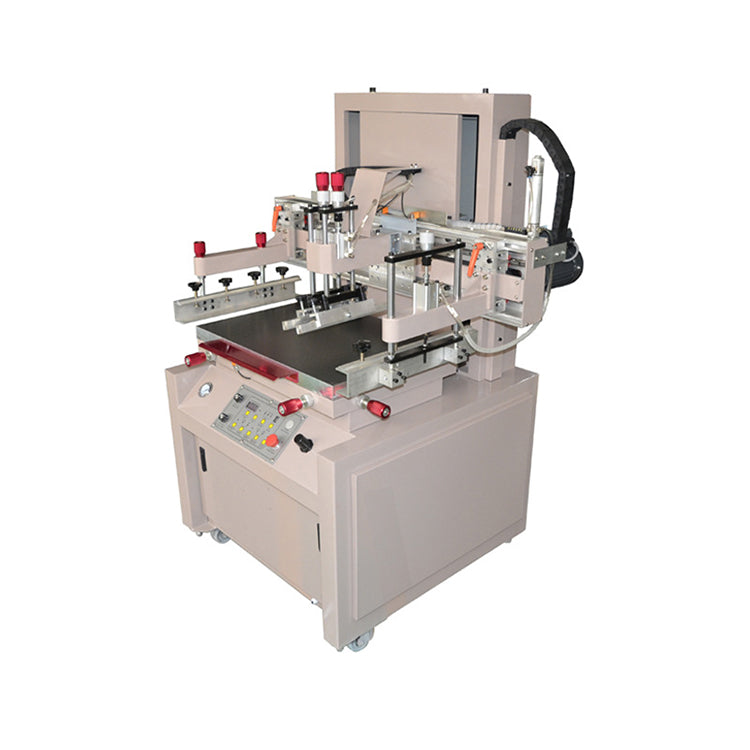

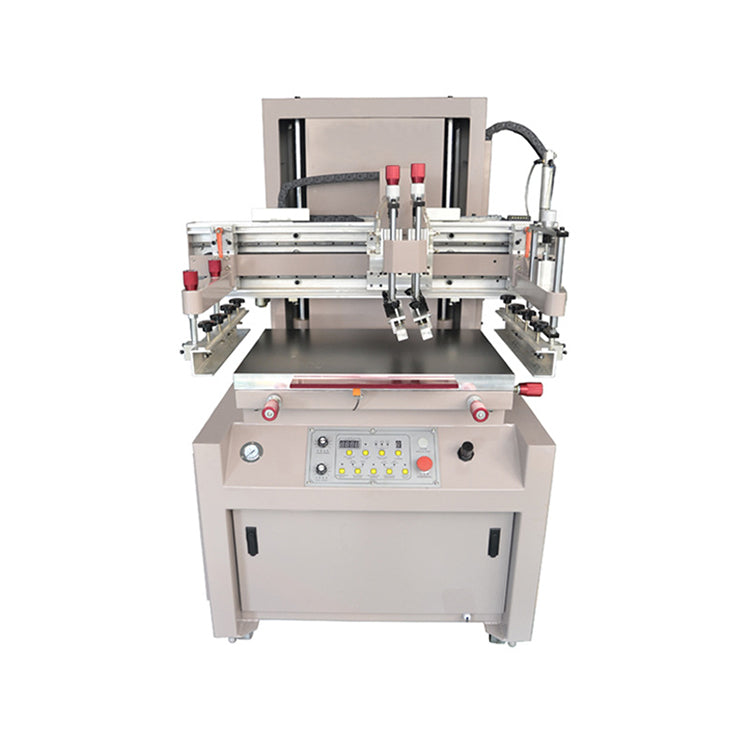

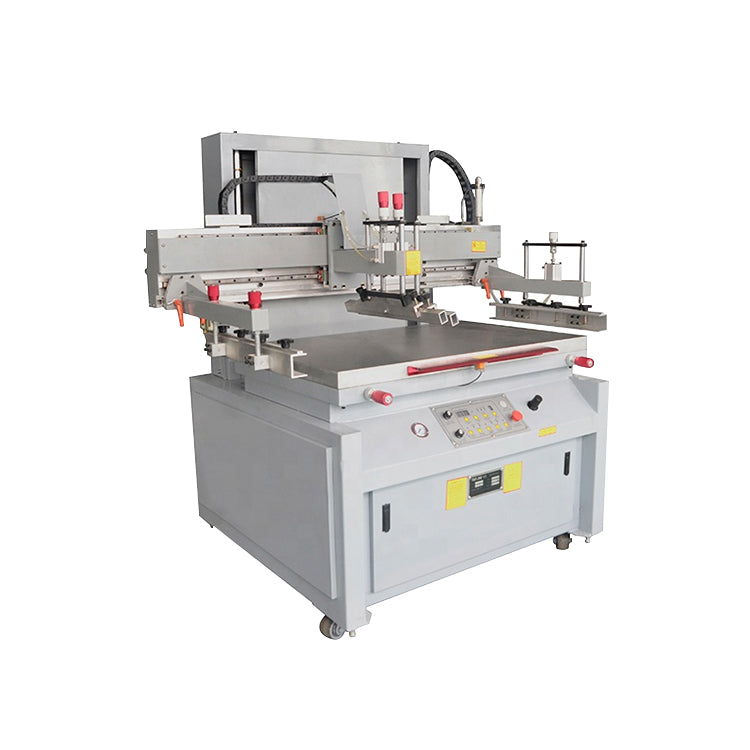

Flat Screen Printing Machine


1.Vertical structure with the electric driven printing plate goes up and down vertically, and the electronic driven print head moves left/right;
2.Single chip controlled circuit, printing and plate goes up and down using independent driving source;
3.Electric controller controls the printing knife moves up and down, photocell eye controls the stroke;
4.Three modes: manual/semi-automatic /automatic, the break time of printing is digital controlled;
5.Independent printing head up-and-down movement device makes the installation and disassembly of scraper, ink blade, and screen frame more convenient;
6.Double guide column clamps arm make the installation and adjustment of screen frame more convenient;


This Flat Screen Printing Machine is widely used for various of plane products,Print on metal,glass,wood,paper,plastics ,Membrance switch ,PCB ,PET film ,Light guide plate ,CD card ,bags ,non -woven fabrics etc
