Herbal Medicine Pulverizer

Herbal Medicine Pulverizer

1 total reviews

Regular price $2,259.00
Regular price Sale price $2,259.00
Sale Sold out
Shipping calculated at checkout.
Model

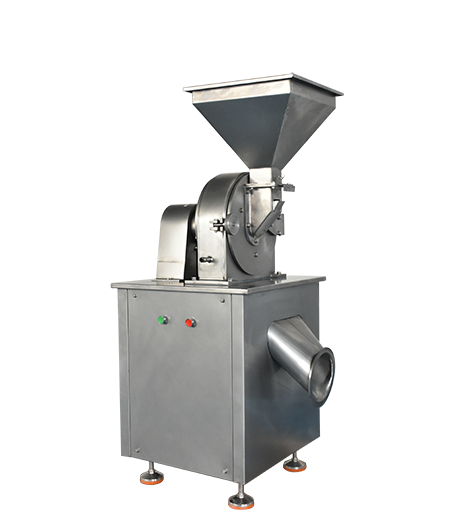

Stainless steel high speed pulverizer

The SF series pulverizer utilizes the high-speed relative motion between the movable toothed plate and the fixed toothed plate, so that the crushed materials can be pulverized by the comprehensive action of gear impact, friction and impact between materials. The machine is simple in structure, strong in operation, stable in operation and good in crushing effect. The crushed material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing mesh screens with different apertures. In addition, the machine is made of stainless steel.

Model Spindle speed(r/min) Production capacity(kg/h) Power(kw) Crushing fineness (mesh) Machine size(mm) Machine weight(kg)
SF-130 7000 2-5 1.1 10-120 400*350*850 75
SF-180 7000 10-30 2.2 10-120 690*420*880
85
SF-250 5000 50-250 5.5 10-120 950*520*1250 220
SF-320 4000 80-300 7.5 10-120 960*520*1450 250
