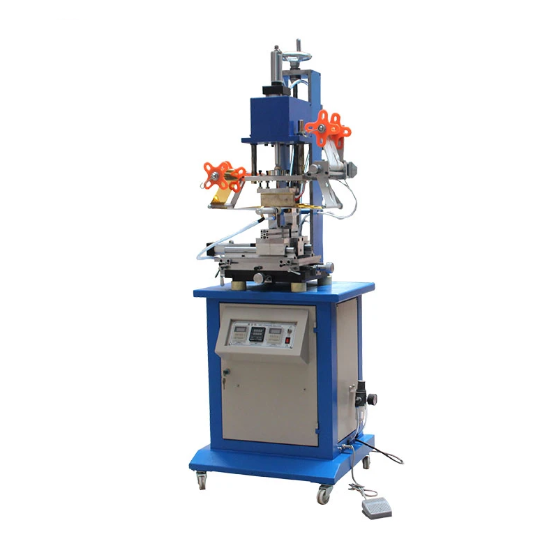

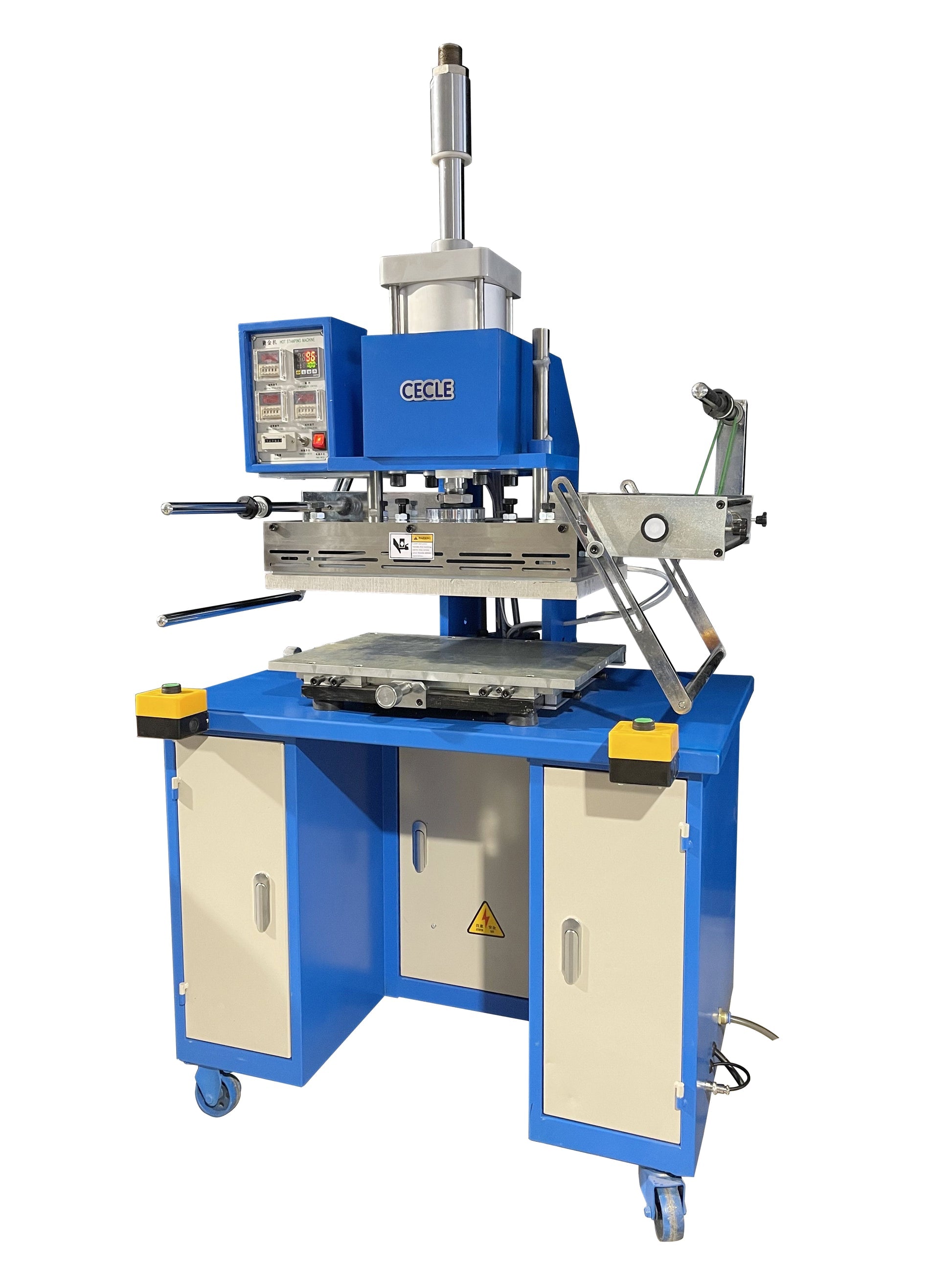

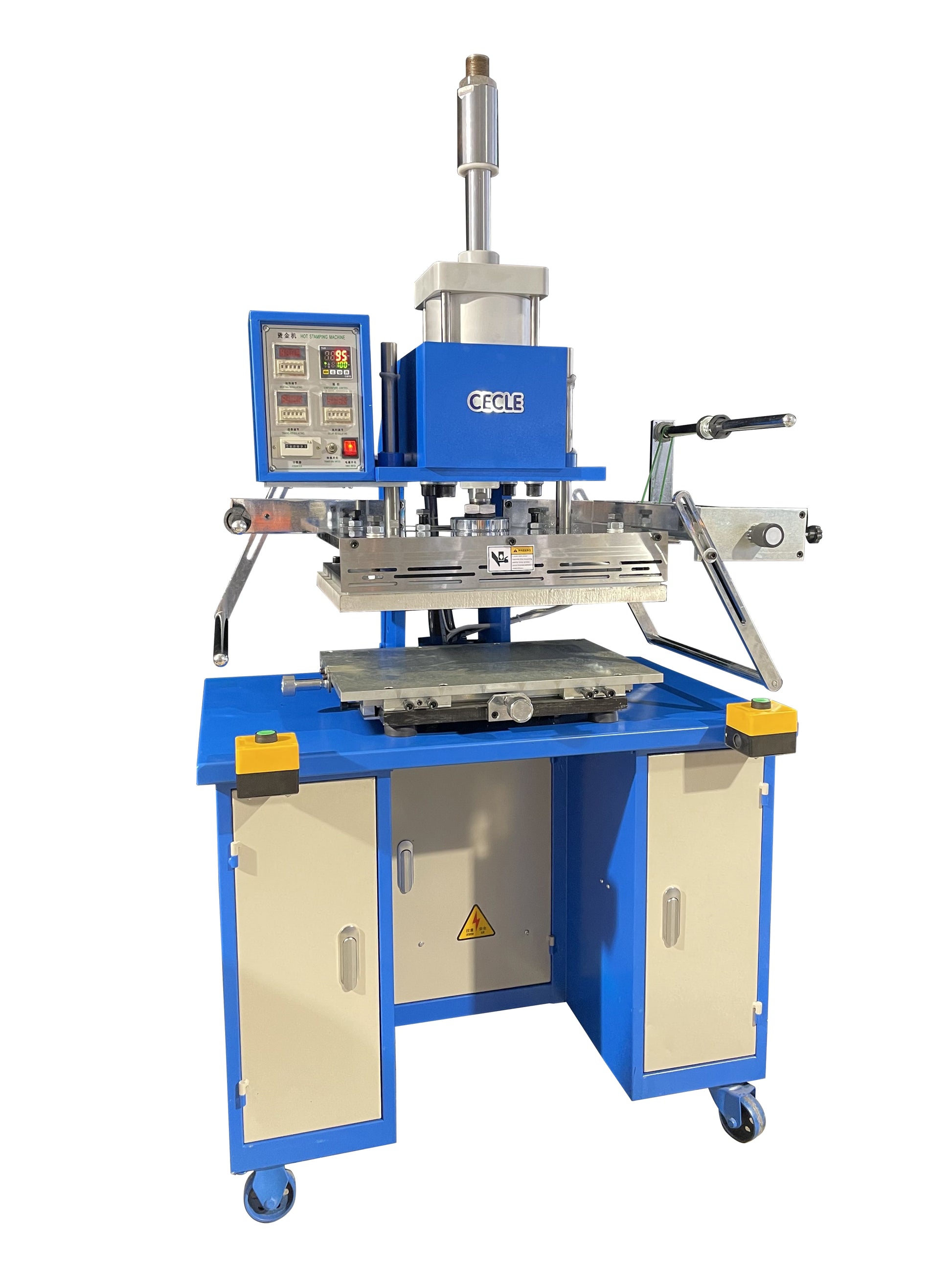

Pneumatic Hot Foil Stamping Machine

Pneumatic Hot Foil Stamping Machine

Regular price $1,700.00
Regular price Sale price $1,700.00
Sale Sold out
Shipping calculated at checkout.
Model
Model:  AGP-210
Heating plate size :  210mm*260mm
Pressure: 0.4T
Speed:  10-20 times/min
Voltage:  2kw
Power: 220v 50~60hz single phase
Applicable material:  Hot stamping foil
Hot stamping products: Flat Products
Air pressure 0.6~0.8mpa
Control mode: pneumatic
G.W./N.W: 130kg
Packaging dimension: 570*460*1600mm
Automatic grade:

semi-auto

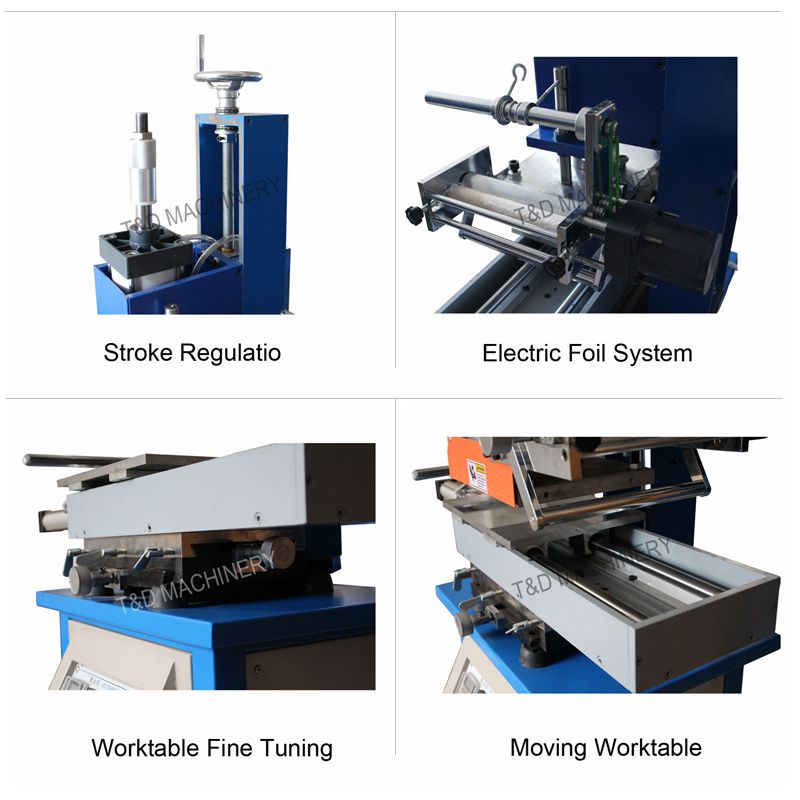

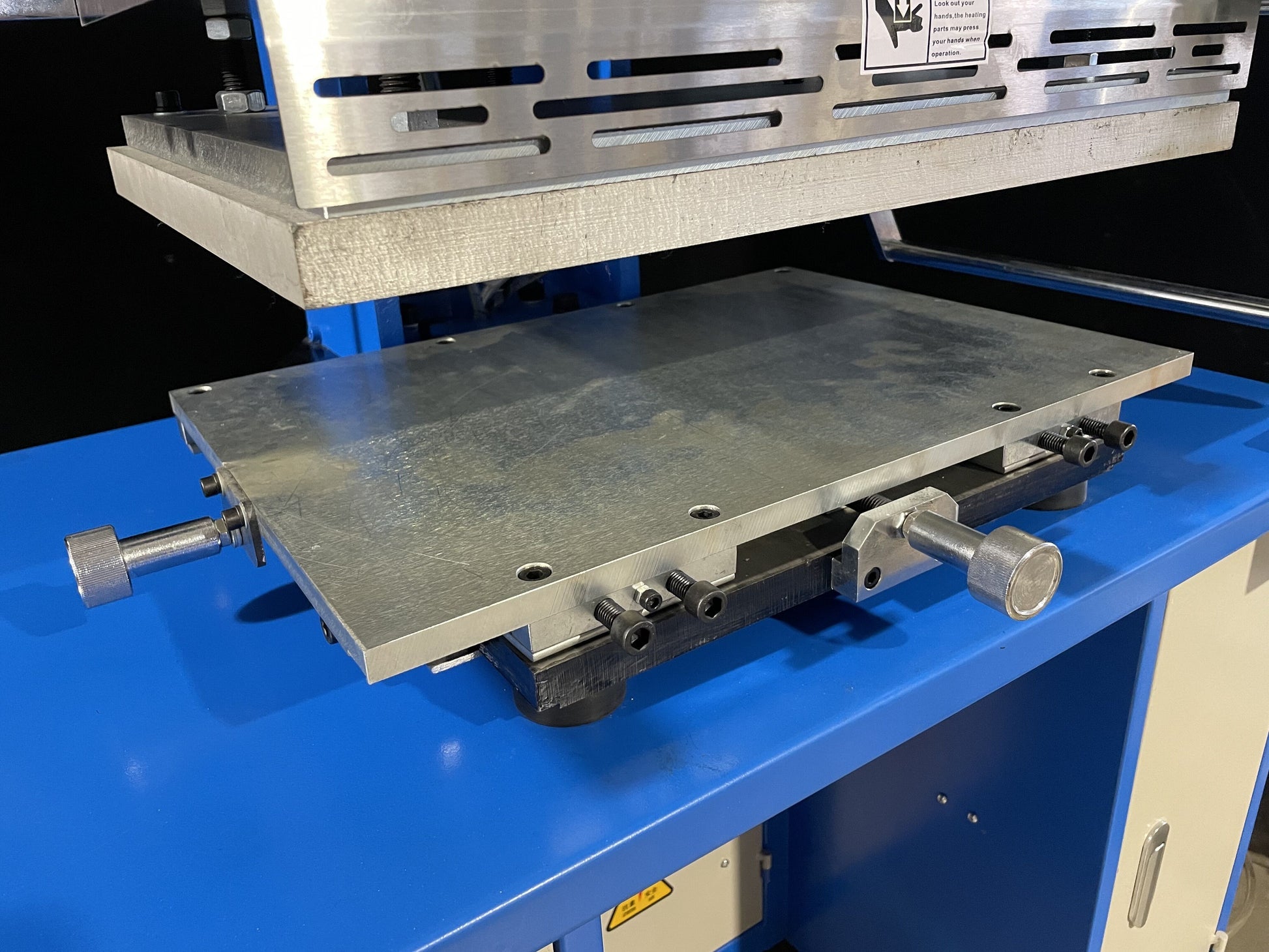

1.Worktable can be slight adjustment, convenient to find hot stamping location; Safety protection functions;

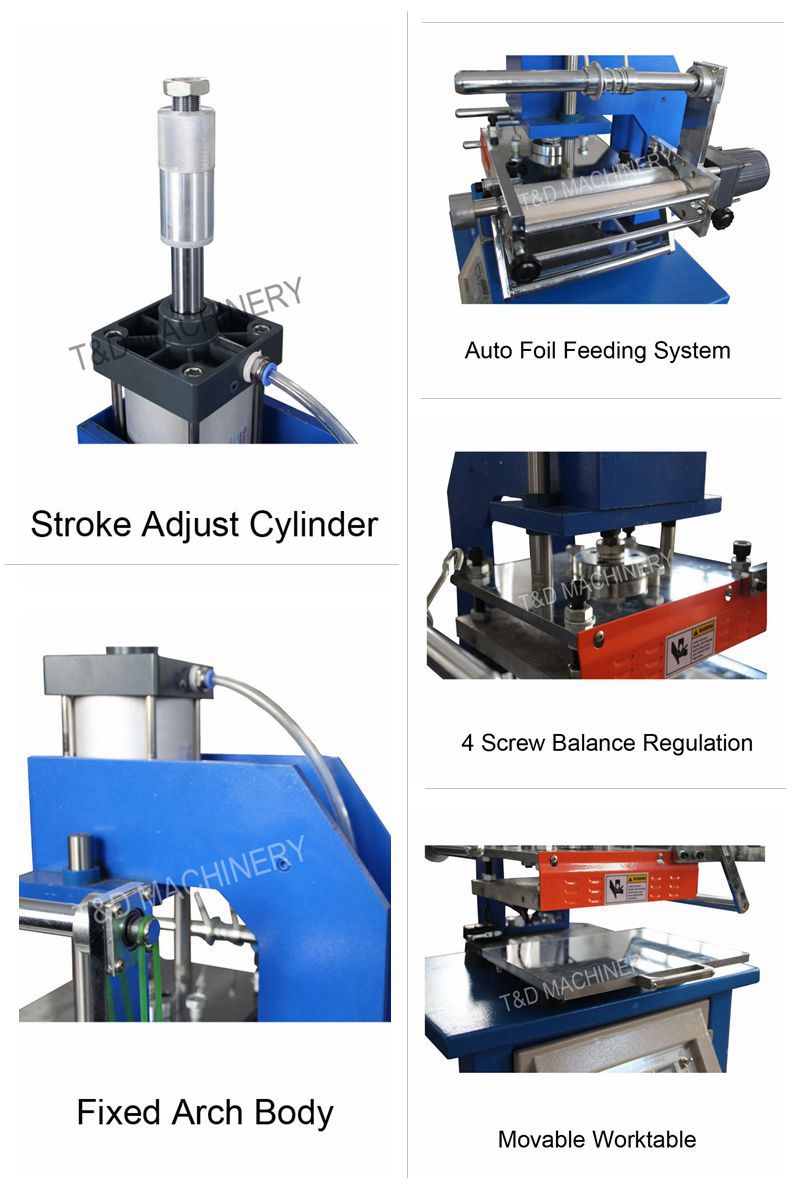

2.Automatic hot stamping foil feeding by using feeding device, manual products feeding;
3.Easy to use by using digital time relay to control the operation;
4.Up and down stoke, hot stamping foil movement stroke, running speed, hot stamping temperature can be adjusted;
5.Using advanced technology of the heater, temperature rise fast, the temperature is stable, reliable and durable;
6.Pneumatic drive and need connect to air compressor;
7.Low pressure are suitable for small size flat hot stamping products;



Please contact us before you place order!
